HMI Touch Panel 17 Inch | Ever Glory

Product Advantages

Structural and System Design Promoting Durability and Customization

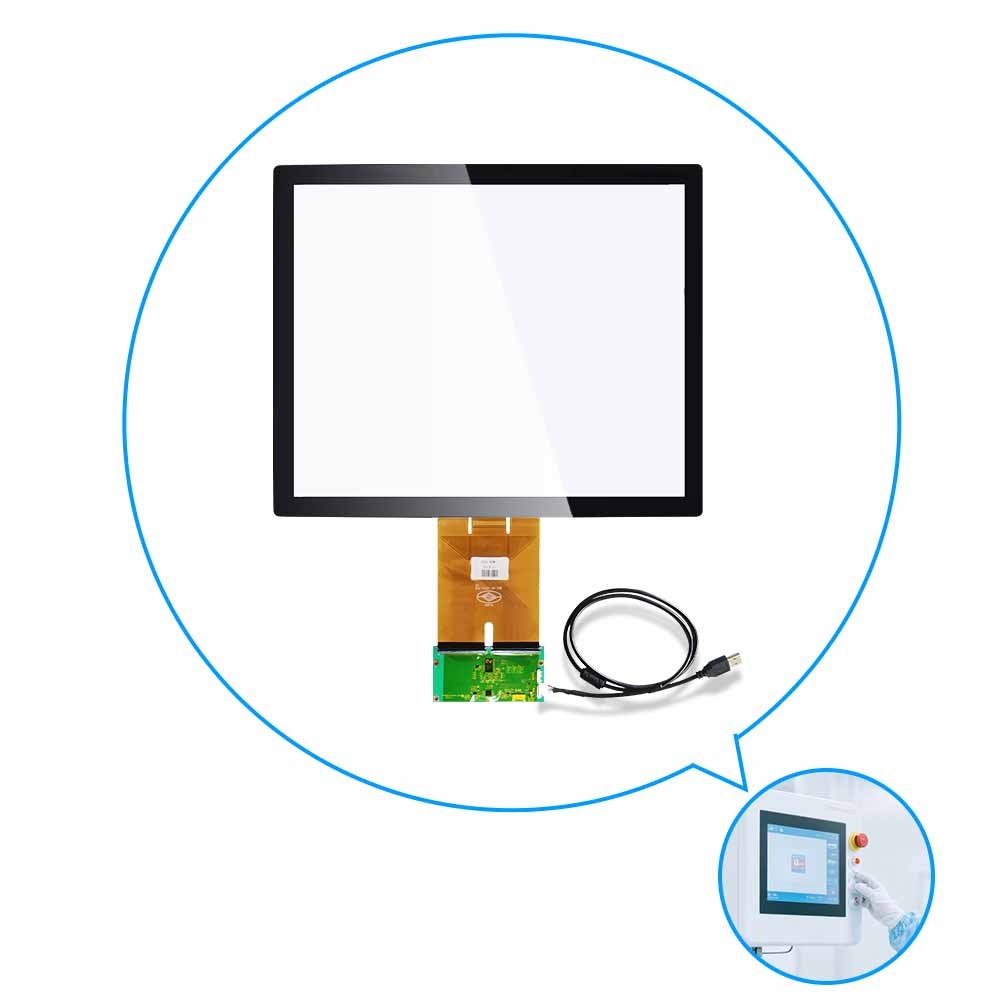

The industrial touch panel manufacturers at Ever Glory have incorporated a modular design philosophy with the 17-inch capacitive panel. The G+G tempered glass and robust cover thickness offer mechanical resilience essential for industrial settings. EMI shielding on the connecting cable, IP65 ingress protection, and flexible packaging options allow tailored integration into diverse operational environments. The panel’s precision CNC cut dimensions and COB connector type support streamlined installation and system upgrades. Customization capabilities extend to both functional and aesthetic parameters, enabling precise alignment to specification requirements from various industrial sectors.

Performance Enhancements Delivering Operational Efficiency

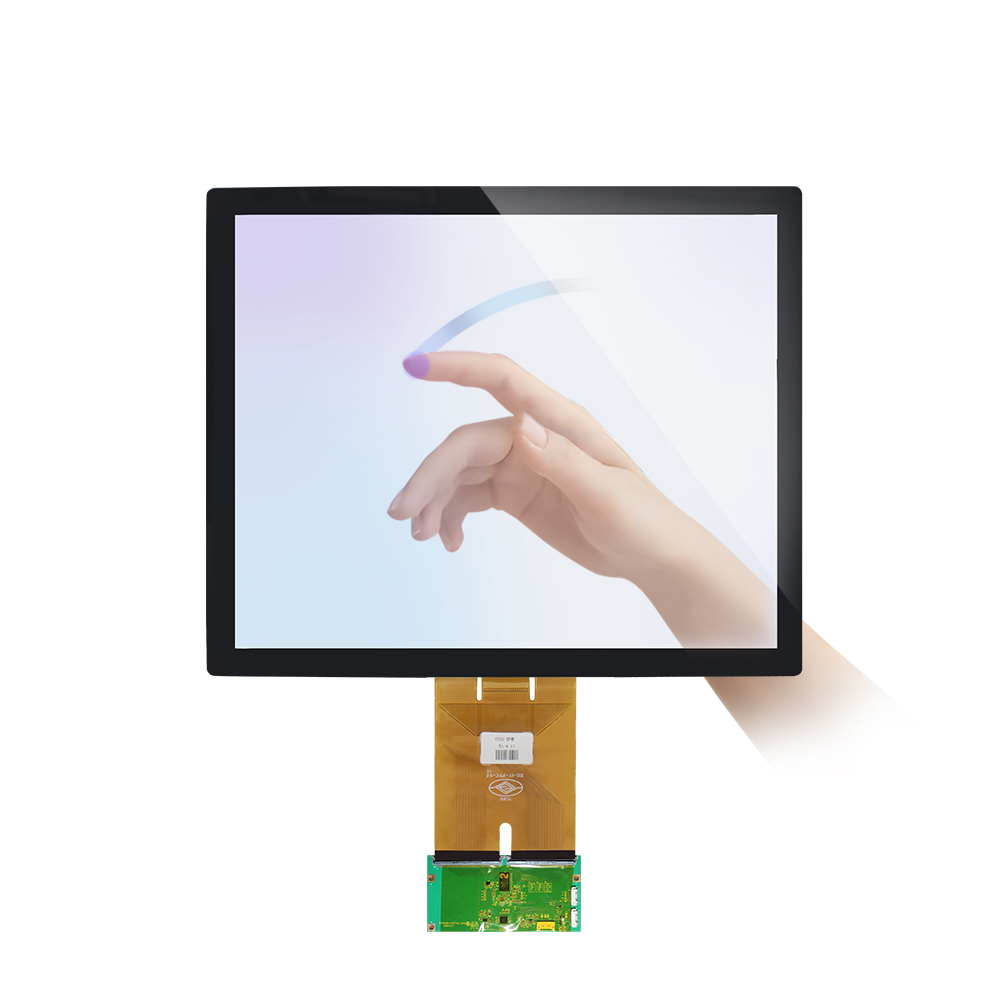

Functionality is optimized via a high report rate and multi-touch support covering glove and wet hand inputs, significantly expanding operational scenarios in demanding industrial applications. The anti-glare and oleophobic surface enhance user interface clarity under variable lighting and contamination conditions, reducing downtime for cleaning or adjustment. This touch screen manufacturer ensures the module’s reliability is reinforced with a three-year warranty, providing assurance for long-term projects. The device’s temperature tolerance and dust- and water-resistant properties enable continuous use in environments with extreme thermal variations or exposure to oils, dust, and vibration.

Use Scenarios

Automated Manufacturing Controls Requiring Precise Touch Interaction

In automated assembly lines, the industrial touch screen serves as a critical interface between operators and machinery control units. The panel’s ability to support multi-touch inputs, including glove-based operation, ensures that production staff can efficiently adjust settings or respond to alerts without removing personal protective equipment. The IP65 waterproof rating and EMI shielding prevent operational interference from environmental factors such as dust or electrical noise. Integration with programmable logic controllers (PLCs) and SCADA systems enhances data accuracy and reduces delays in process adjustments, thereby maintaining uptime and throughput quality in sectors like automotive assembly or electronics manufacturing.

Outdoor and Semi-Outdoor Industrial Kiosks with Environmental Isolation Needs

For industrial information kiosks located in semi-outdoor or harsh conditions, the 17” capacitive touch screen panels provide a rugged yet responsive interface option. The tempered glass and G+G design resist mechanical wear and impact losses while the anti-fingerprint surface facilitates ease of cleaning in dusty or oily settings. Its compliance with IP65 standards ensures resistance against rain or cleaning sprays. The panel’s wide temperature range functionality supports outdoor operations without risk of touch drift or system failure. These features enable the seamless deployment of kiosks for remote monitoring, operator instructions, or equipment diagnostics in industries such as logistics hubs, utilities, and oil field installations.

Industrial applications often bring various challenging issues: unresponsive touch and system freeze at high temperatures, condensation and touch failure in low-temperature environments, poor scratch resistance, fragile screens against external impact, and insufficient surface waterproofing. Wondering how we tackle these pain points one by one?

Features of the hmi touch panel 17 inch
1.G+G structure, the surface cover lens is made of strengthened tempered glass with a hardness of over 8H, effectively resisting scratches in daily use. Meanwhile, the dual-glass structure delivers far better performance in bending resistance, deformation resistance and vibration resistance than G+F structures, making it ideal for high-vibration scenarios such as industrial and vehicle-mounted applications.

2.wide-temperature industrial chip, it operates stably within a temperature range of -20℃ to +70℃. This effectively solves common issues such as warping, degumming and touch drift caused by extreme temperature cycles.

3.The surface glass has passed an 8–24 hour corrosion resistance test. It can withstand industrial oil, cutting fluid, cleaning agents, weak acids, weak alkalis, salt water and other liquids without whitening, cracking or delamination.

4.The flexible cable is equipped with an EMI shielding layer and complies with CE, FCC, RoHS and other certification standards. It effectively prevents touch point jumping and inaccurate touch response in high-voltage and inverter working environments.

5.Visible light transmittance: ≥85%. With anti-glare AG coating, anti-fingerprint AF and oleophobic surface treatments, it ensures clear readability under strong light and allows easy wiping of oil stains, fingerprints and other contaminants.

6.It supports accurate and stable touch operation without cursor jumping when wearing latex, nitrile or fabric gloves, using wet hands or operating through thick media.

7.Warranty: 3 years

8.Customizable in appearance, functions, packaging and other aspects.

Specifications

Packaging:
We offer two options, including high-quality hard carton packaging and eco-friendly renewable wooden crate packaging.

FAQ
1.What is a touch screen panel overlay kit?

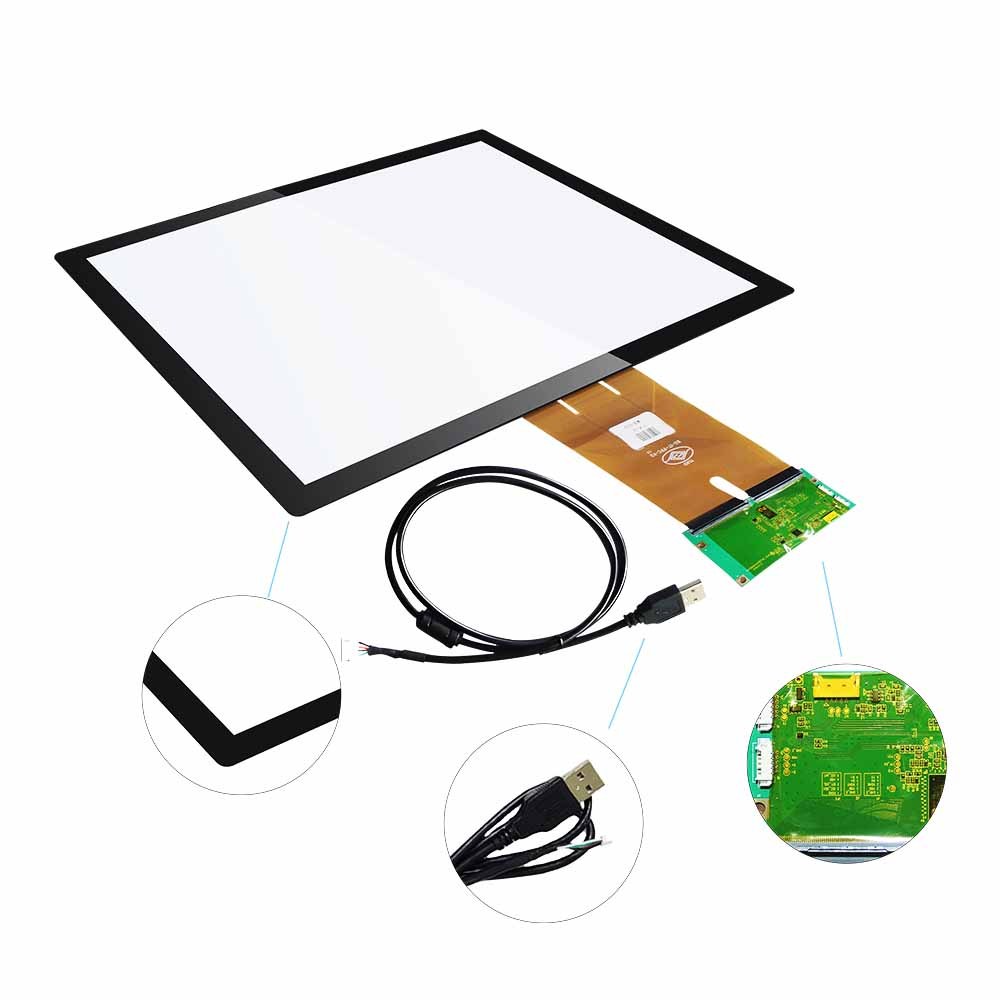

It is a complete upgrade accessory including cover glass, touch sensor, adhesive tape, FPC cable and driver board, used to retrofit or replace the original touch screen for industrial displays and HMI devices.

2.Can the industrial touch overlay support glove and wet hand operation?
Yes. Industrial PCAP overlay kit adopts customized touch IC and sensor design, stably supports latex, nitrile gloves, thick work gloves and wet hand touch without drift or failure.

3.What surface treatments are essential for industrial scenarios?
Anti-glare (AG) to avoid strong light reflection, anti-fingerprint (AF) oil-repellent coating for easy cleaning, and high-hardness tempered glass to prevent scratches and wear.

4.Is the overlay kit easy to install and replace?
Yes. Equipped with high-temperature resistant back glue and reserved mounting holes, it supports frame pressing or adhesive pasting, no complex modification, suitable for on-site rapid maintenance and equipment renovation.

5.What operating systems and interfaces are compatible?
It supports Windows, Linux, Android and QNX industrial systems; mainstream interfaces include USB, I2C and RS232, with plug-and-play and no extra driver required for most devices.

6.What industries commonly use your 17 inch touch panel?
Our 17 inch touch panel is widely used in industrial sectors such as manufacturing, automation, oil and chemical processing, transportation, and defense. Its durability and multi-touch capability make it suitable for heavy-duty and vibration-prone environments requiring reliable industrial touch panels.

7.Can you customize the appearance and functions of the 17 inch HMI touch panel?
Yes, we offer flexible customization options including appearance, functionality, and packaging to meet your specific application needs. Our R&D team supports these adjustments to ensure the 17 inch touch panel fits seamlessly into your industrial system.

8.How do you ensure stable performance of your industrial touch screen in harsh environments?
We build our industrial touch screens with G+G tempered glass, an IP65 waterproof rating, EMI-shielded cables, and surface coatings that resist scratches, fingerprints, and glare. This design guarantees accurate touch response even under dust, water, or electrical interference.

9.What are the shipping and warranty terms for your 17 inch HMI touch panel?
We ship orders within approximately 3 days after confirmation, supporting low MOQ of one piece. All products come with a 3-year warranty to ensure reliability. Trust us as your industrial touch panel manufacturer for dependable long-term support.
